Unilin Thermal Liner SR/TB-MF

Product Code: ME9MXT

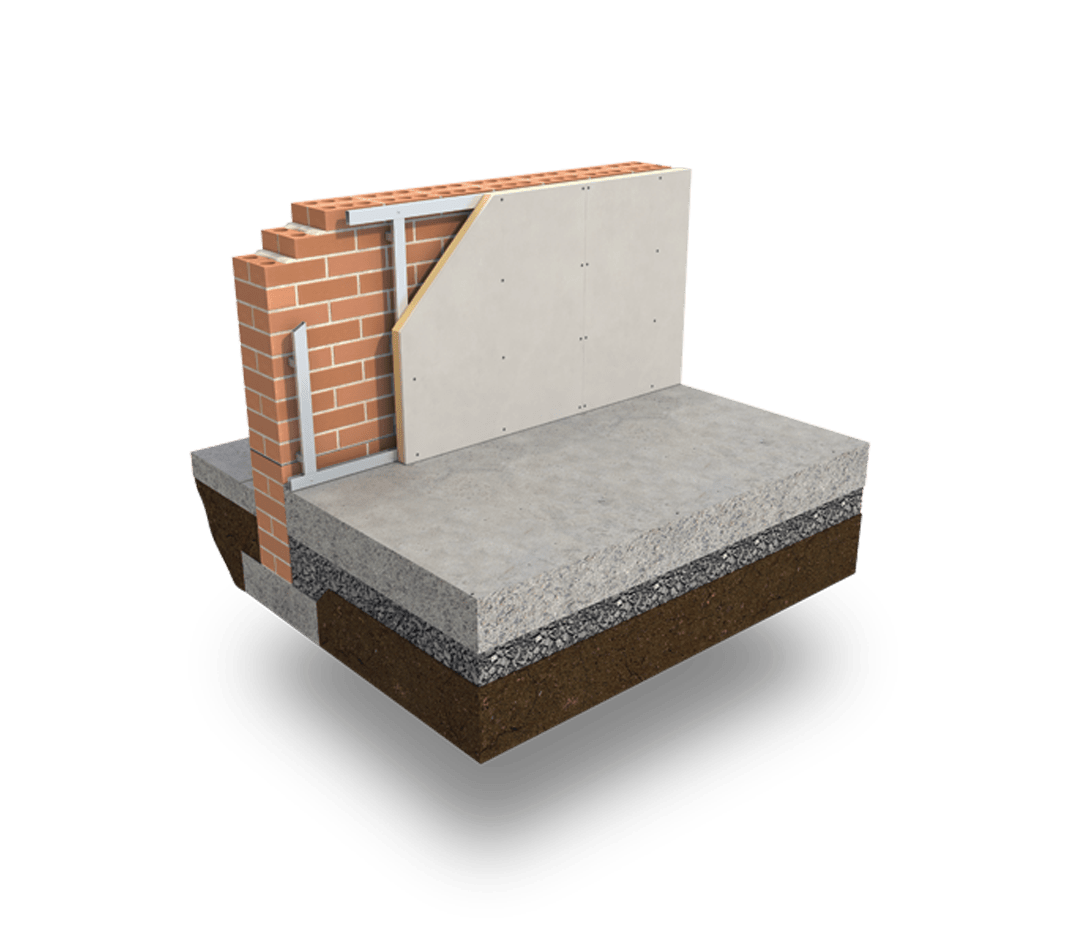

SR/TB-MF is a composite insulated panel of Xtratherm phenolic insulation core with a composite foil facing bonded to 12.5mm tapered edge plasterboard for internal walls, sloped roofs and ceilings. SR/TB-MF is only suitable for mechanically fixed applications.

The composite foil facing on both sides of SR/TB-MF incorporates an integral
vapour control layer, which helps to reduce the risk of condensation. SR/TB-MF is
designed to provide high levels of thermal insulation and drylining in one operation,
providing the solution of choice in newbuild and renovation.

Description

52.5mm Xtratherm Safe-R Thermal Liner SR/TB-MF is a composite insulated panel of Xtratherm 40mm Phenolic core with a composite tissue facing bonded to a 12.5mm tapered edge plasterboard for internal applications, mechanically fixed. Xtratherm Safe-R Thermal Liner SR/TB-MF is designed to provide high levels of thermal insulation and dry lining in one operation for masonry walls. The Safe-R Thermal Liner SR/TB-MF board achieves a resistance greater than 100 MN.s/g. Improved vapour resistivity when required, can be provided with two coats of Drywall Sealer. Safe-R Thermal Liner SR/TB-MF is faced with low emissivity aluminium/glass tissue facings, and has a thermal conductivity as low as 0.020W/mK.

  • Superior performance phenolic foam,
  • Thermal conductivity as low as 0.020 W/mK,
  • Effective thermal and fire performance,
  • Achieves a resistance greater than 100 MN.s/g,
  • Can be readily cut using a sharp knife or fine toothed saw,
  • Low smoke obscuration,
  • Low risk fire rating – Class 0,
  • HCFC/CFC Free,
  • Zero ODP,
  • Rot proof and will remain effective for the life span of the building,
