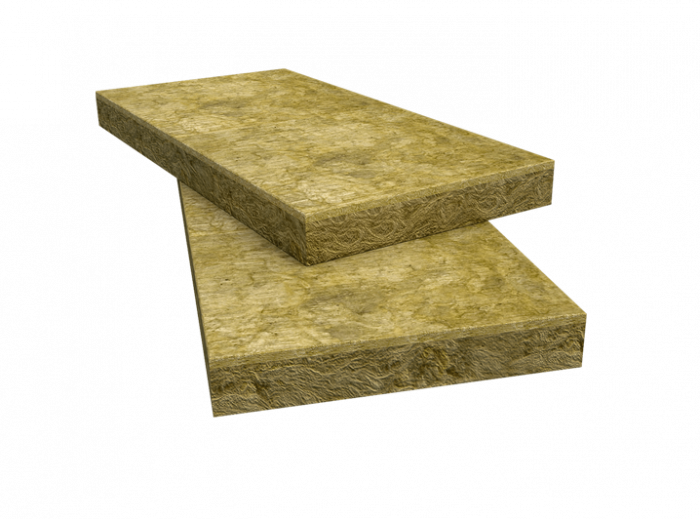

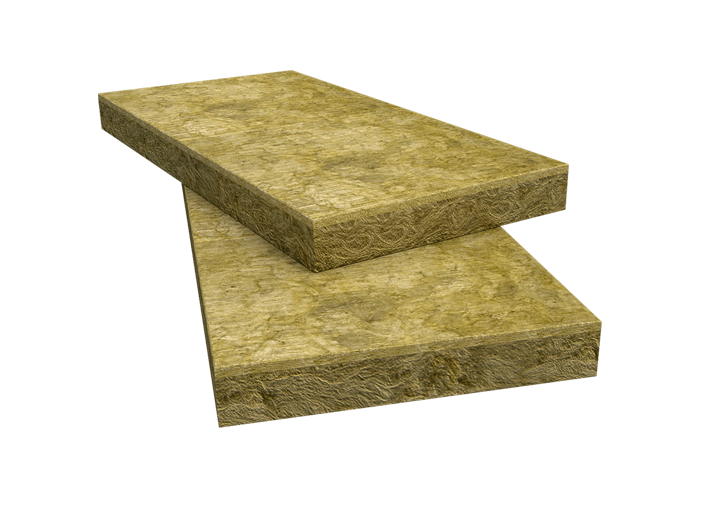

ROCKWOOL RAINSCREEN DUO SLAB®

Product Code: OA91206RW

Non-combustible insulation for use within facade systems

RAINSCREEN DUO SLAB is a BBA-approved insulation product, that in addition to thermal comfort, provides an independently-tested acoustic benefit.

Description

RAINSCREEN DUO SLAB is a stone wool insulation product specifically developed for use within ventilated cladding systems, as well as sealed systems such as curtain walling.

Manufactured using Dual Density technology, the outer surface of each slab features a distinctly higher density than the underside. This provides a firm and robust surface for the application of fixings, while the resilient underside can accommodate unevenness in the substrate.

Once installed, the higher density outer surface works in combination with a factory-applied water repelling agent to give improved resistance to rain ingress during construction.

As demonstrated by independent in-situ laboratory testing, RAINSCREEN DUO SLAB helps to reduce the transfer of airborne noise – with results for typical systems as high as Rw 62 dB. For more information please see the Rainscreen Acoustic Reference Guide.

To ensure a safe living and working environment, we recommend specifying RAINSCREEN DUO SLAB insulation with Rockpanel A2 cladding panels. This combination of Euroclass A-rated products is a popular choice for multi-unit residential blocks, office blocks, hospitals, schools, hotels and multi-use developments.

  • Euroclass A1 non-combustible – recommended for all building types, particularly those above 18m or deemed high risk
  • Easy to install, the tough outer layer of RAINSCREEN DUO SLAB® resists damage on site and over-driving of fixings.
  • Shielding your spaces from unwanted noise – Dual Density stone wool insulation acts to absorb and reflect sound, trapping and dampening sound waves. More information, including in-situ testing, can be found in ‘Acoustic Performance of Rainscreen Facade Systems’.
  • Repels water, yet remains breathable, limiting the risk of condensation
  • Optimal temperature whatever the weather outside – the thermal properties of RAINSCREEN DUO SLAB® can dramatically reduce heating, cooling and ventilation costs, and reduce a buildings carbon footprint.
